Fine Mist Sprayers for Glass Bottles: Output, Finish, Fit

A fine mist sprayer for a glass bottle is specified by four numbers: output per stroke (commonly 0.05 to 0.20 ml), full cone angle (roughly 25 to 70 degrees), median droplet size (Dv50, well below 100 microns for a cosmetic mist) and the neck finish it screws or crimps onto. Fit depends on more than the finish code, though. Neck height, collar depth and the bottle's internal height decide whether the pump seals and whether the dip tube reaches the product, and the mist itself has to be approved with the real fill, not with water.

Check first that the fill belongs on a fine mist engine

A fine mist sprayer is an atomising pump. Each full press pushes a metered volume through a small orifice, where it breaks up and leaves as a soft cone of droplets. That only works with a thin liquid that flows freely at room temperature: an alcohol toner, a facial mist, a hydrosol, a diluted essential oil blend, a light hair or body mist. A lotion or gel in the same engine either fails to draw or comes out as a short, coarse jet, and the next stroke finds the orifice partly blocked.

Three other hand-operated closures are often lumped in with it. They behave differently, and the product decides between them.

If the fill is a surfactant cleaner and the user expects a strong directed spray, look at trigger heads and their chemistry limits instead. If it is thick or must be dosed, the pump dispenser options for glass bottles are the right starting point. A fill that will not pour freely at room temperature suits neither a fine nor a coarse sprayer.

One relative of the standard mist body needs to be kept apart from it. A continuous-spray engine charges a pressurised chamber and releases product over several seconds from a single press. It is a separate architecture, quoted separately, and cannot be swapped for the ordinary body discussed here.

Output per stroke, cone angle and droplet size

Output per stroke

Mist bodies are catalogued by millilitres per press, and the grades are standard enough that a short list covers most of the market: around 0.05, 0.07, 0.10, 0.13, 0.16 and 0.20 ml, with small variations from one pump family to another. The dose comes from the volume the piston sweeps in its chamber and the timing of the inlet and outlet valves. A bigger button or a longer stem dispenses nothing extra. To change the dose you change the engine grade, and that normally means a different chamber, spring load and press force.

The small dose is intentional. It is what lets a face or a pillowcase be misted without visible wet spots.

Cone angle

The angle is quoted as the full cone in degrees. A narrow cone puts the same volume on a smaller patch, which suits a spot treatment or a targeted facial mist. A wide one suits body, linen and surface mists where even coverage matters more than penetration. Because the same volume is spread further as the cone opens, the amount landing on each square centimetre drops.

Angle is fixed by the geometry of the nozzle insert, the small moulded part that carries the orifice. How hard the consumer presses does not change it, so it can be written into a specification and verified.

Droplet size

A spray is a distribution of sizes, so droplet size is given as a median, usually Dv50. Three things set it: orifice diameter, the pressure the chamber builds, and the physical properties of the fill. Alcohol lowers surface tension and helps the liquid break up finely. Water, glycerin and other humectants raise viscosity and surface tension and coarsen the mist. One engine can therefore give a good toner and a poor heavy mist after a formula change, which is why approval samples are sprayed with the actual product.

Temperature has the same effect as a formula change. A liquid that is quick and thin in a warm filling room thickens in a cold warehouse, and the plume turns weaker and slightly coarser. Packs that will be stored or shipped cold should be tested at the cold end of their range as well as at filling temperature.

Typical grades and where they are used

Treat these as typical catalogue bands, to be confirmed on the engine drawing and with the real fill. A narrow cone and a fine droplet tend to arrive together because one small orifice produces both. The cost is a lower ceiling on output and more sensitivity to anything that can clog the orifice.

Two conventions to write beside the numbers

Output per stroke is a volume. A 0.10 ml press of a water-based toner does not weigh the same as a 0.10 ml press of an alcohol blend, so bench verification means priming the pump, weighing a set number of strokes and converting with the density of the fill. Assuming a millilitre weighs a gram gives the wrong answer.

Priming strokes are not doses either. A new engine is dry, and the dip tube, valves and chamber have to fill before anything reaches the nozzle. A bottle described as holding three hundred sprays gives the user slightly fewer once priming is counted separately. For the sums that convert capacity into spray count and days of use, see our guide to spray bottle sizes and stroke counts.

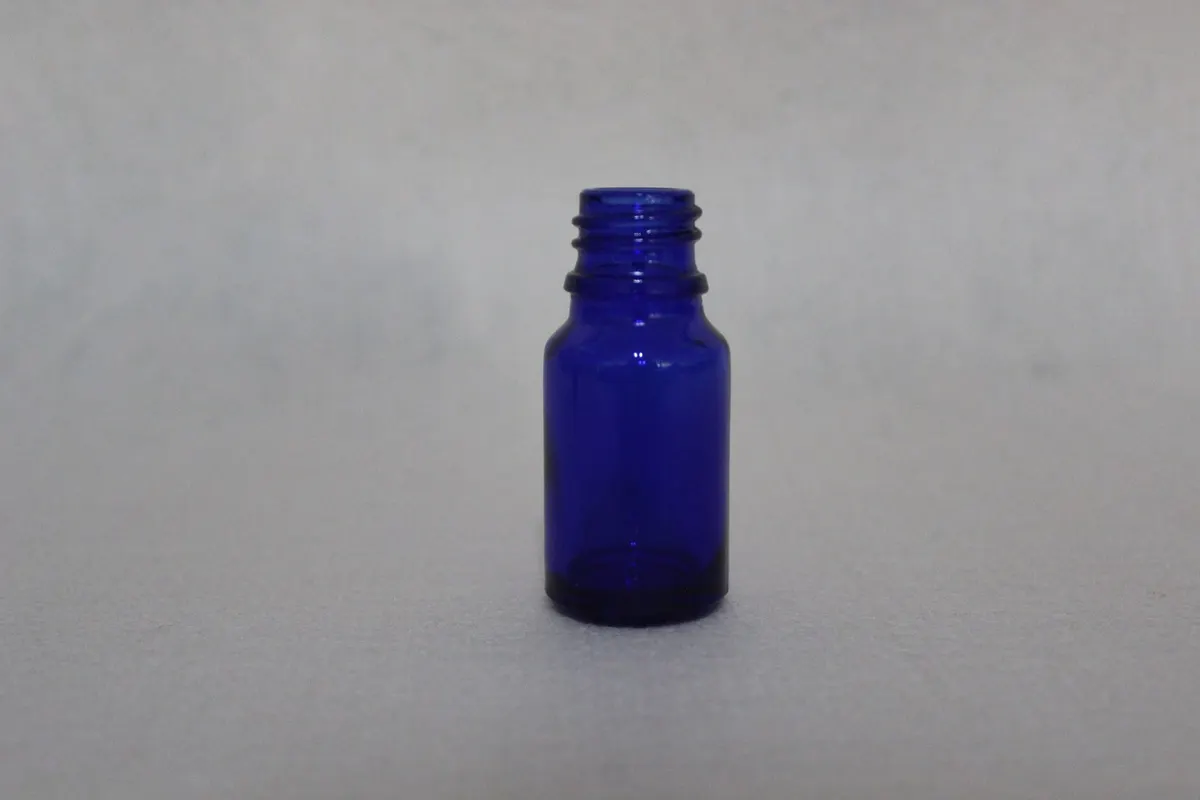

Finish series and the pump body that goes with each

A finish code holds two facts. The digits before the hyphen are the nominal diameter in millimetres; the three after it name the thread profile family. Cosmetic and personal care packs mostly use the 410 and 415 profiles, with wider members of the 400 series on some closures. Two pumps of equal diameter and different suffix may not interchange, because thread pitch, thread depth and the height where the thread starts can all differ. Reading the code as a diameter only is the usual reason a pump screws on yet refuses to seal.

If the bottle has not been designed yet and branding does not dictate otherwise, begin with a 24-410 neck. The pump then stays on a standard body and no closure tooling has to be added to the project. The bottles themselves, by capacity and finish, are listed in our glass bottle collections.

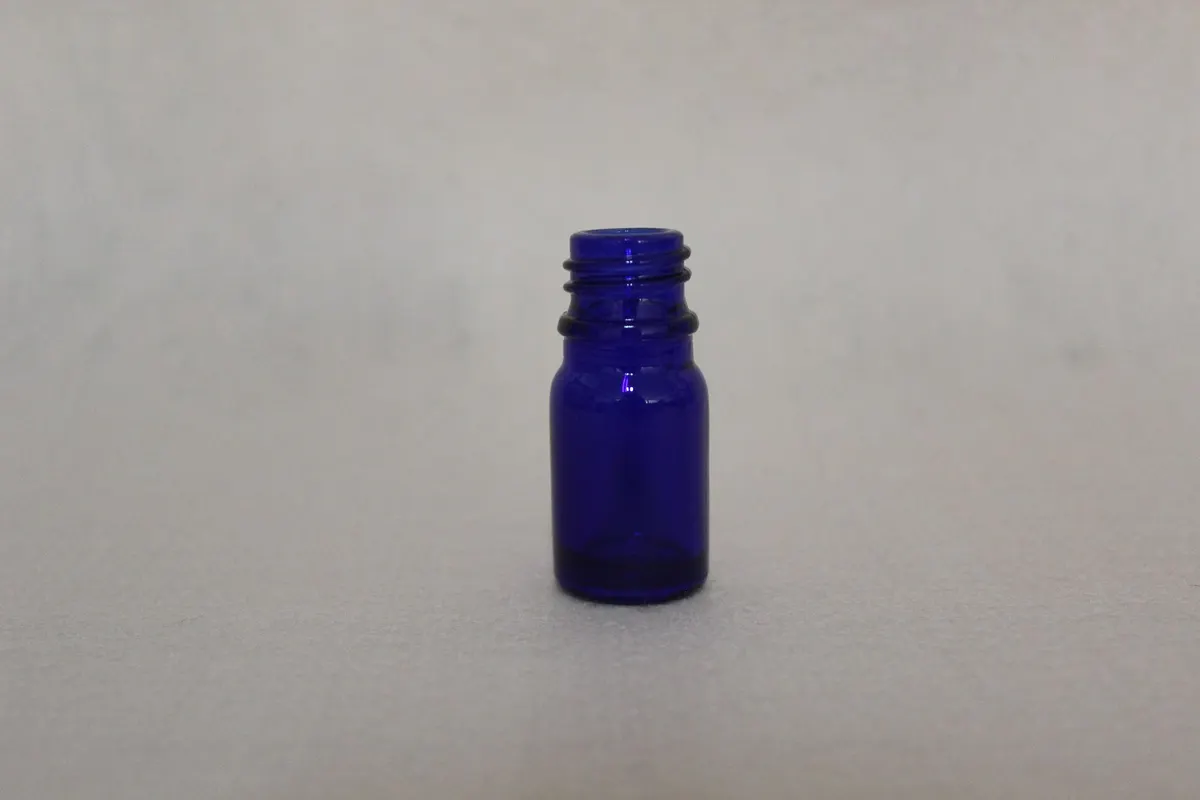

Neck height picks the body variant

Pump bodies are made in short-neck and long-neck versions, so a body is ordered by finish and neck height as a pair. A tall neck needs a collar deep enough to cover the whole standing height of the glass. A short neck needs a body whose collar seats on the sealing land before the shoulder gets in the way.

The same reasoning applies when one bottle is offered in two versions, with a mist pump or a plain cap. Any finish both closures share will accept either, provided the neck height suits both. A short cap on a tall neck shows the same band of bare glass as a short pump collar does.

Crimp-on bodies

A crimped mist body is not a screw pump with a different fastening. It has neither thread nor collar: an aluminium ferrule is crimped over a glass or aluminium neck. The pump cannot be exchanged for a screw type, the filler needs crimping equipment, neck tolerances are tighter, ferrule and neck land must be deliberately paired, and the consumer cannot open and reclose the pack in the normal way. Brands accept all of that for fragrance and other volatile, alcohol-rich mists because the seal is tighter.

When the question is wider than mist pumps, for example decoding an unfamiliar designation or moving to another closure family, use the glass bottle closure guide.

Dimensions the brief has to carry

Fit comes from a handful of dimensions read together. Buyers who send a finish code alone tend to discover the missing one when the sample arrives with a collar sitting proud of the shoulder or a dip tube hanging above the last few millilitres.

• Finish. Diameter and thread profile, as described above.
• Neck height. The source of the most visible faults. Glass taller than the collar leaves a ring of bare neck that looks like a poor fit even if the seal is good. Glass shorter than the collar expects, or a shoulder that rises early, lets the collar hit the shoulder before the gasket seats, and no extra tightening will close that leak path.
• Collar or skirt depth. The visible part of the closure has to cover the neck for looks and for sealing. A covered collar or aluminium shell is decoration and plays no role in the seal, so it should never be used to disguise a gap.
• Nozzle insert. Often forgotten. The insert, not the button, sets angle and droplet size. Fit an insert from another engine and the mist changes completely while the dose stays the same, so mist character and output are two separate lines in the specification.
• Dip tube bore and length. The bore must feed the chamber as fast as the stroke demands, or the chamber only partly fills and the pack sputters. Length is cut to the bottle's internal height, not its nominal capacity, so the tube ends near the base without sitting on it.
• Actuation geometry. Stem length, actuator travel, overcap clearance and the shape of any transport lock. Catalogues rarely give these, and they are the usual reason a pack that seals well cannot be capped on the line.

The gasket seat completes the set, along with ferrule diameter and neck land on a crimped body.

Dip tubes deserve a second look because two bottles with the same finish and capacity can differ inside. A tube carried over from another mould may touch the base and seal itself against the glass, or stop high and leave product the pump never reaches. A residual heel of a few millilitres is the normal result of a correctly cut tube.

Measuring a bottle for a replacement pump

When an existing closure is being replaced, the sequence of checks matters more than speed. These six steps separate the dimensions that govern fit from those that govern the seal.

1. Measure the outside diameter of the finish and identify the thread profile; do not assume the suffix.
2. Measure the standing height of the neck, shoulder to sealing land.
3. Measure the bottle's internal height for the dip tube.
4. Look over the land for chips and mould seams.
5. Check the room available for an overcap and a transport lock.
6. Trial the candidate pump with the real fill, upright and inverted, before quantities are discussed.

Wetted materials and compatibility with the fill

More parts of a mist pump touch the product than most buyers expect. The dip tube and gasket are obvious, but the chamber above them is wetted again on every stroke, so the housing, stem, piston, spring, valve elements and nozzle insert all count.

It is the aggressive minority of a formula that usually settles compatibility, not its bulk.

• High-ethanol toners. The everyday case for a mist, but still to be confirmed against gasket and piston. Alcohol can swell or extract some elastomers, and a swollen gasket alters both the seal and how the actuator returns.
• Essential oil and fragrance-heavy fills. Terpenes and some vegetable oils can swell or extract elastomers and can attack the nozzle insert, so a soak test is required.
• Cleaners. Even dilute, they shift the risk to the spring and valve. For acidic or oxidising formulas, a higher stainless grade or a metal-free body is the safer baseline.

The soak test

Immerse the wetted parts in the actual fill for a defined period, at filling temperature and at an elevated storage temperature. Then re-measure weight, dimensions, colour, odour, seal and delivered dose. A part that gained weight has absorbed product and will behave differently a month later. One that lost weight has released something, possibly a plasticiser or additive. A part that holds its dimensions but changes odour has also failed, because the product will smell of the pump.

Compliance documents

Where destination-market rules for food-contact or cosmetic packaging apply, name the regime on the specification and ask for a declaration of compliance for each wetted part. The frameworks buyers are usually asked about are EU 10/2011 and EU 1935/2004 for food-contact plastics, FDA 21 CFR for the United States equivalent, and ISO 22716 for cosmetic good manufacturing practice. Do not assume a given engine already has such a declaration; request the document against the exact part number. A decorative aluminium shell or covered collar does not touch the product and carries no such requirement.

Tolerances and how each one is measured

Every figure on a mist specification belongs to a moulded assembly with elastomer seals and to a liquid whose viscosity shifts with temperature, so write ranges, not single values. Agree the bands with the supplier, confirm them on a sample of the finished pack, and record the measuring method next to each value so both sides measure the same thing.

The dimensional checks are what prevent leaks. Finish diameter and neck height are measured on the glass lot, collar depth on the pump is compared with them, and the gasket compression window is established on an assembled pack with the real gasket in place.

Torque exists to bring the gasket into its working compression, not to hold the pump on. Too little and the gasket is not fully compressed, so the pack weeps. Too much and the gasket is flattened beyond its elastic range, permanently. Excess torque can also clamp the pump body tightly enough to slow the piston, so an over-tightened pack may under-deliver while looking secure.

The neck land needs a visual inspection as well as a measurement. A chip, a mould seam or a drawn edge defeats an otherwise correct gasket on every bottle in the lot, so check a sample before the run.

Functional checks finish the list: a leak test upright and inverted, a vacuum or pressure-decay test for volatile fills or hard transit routes, actuation force, the actuator's return time, and a durability count showing the spring and insert survive a realistic number of presses. If the buyer uses an AQL-based sampling plan, sample size and acceptance number are fixed before the first run, and the checks are repeated at first-off, during the run and on cartons pulled from finished stock. Any change of glass, engine, gasket, insert or fill means testing again, because the result belongs to the combination.

Filling line order: seat, prime, verify, lock

The working sequence is fill, seat and seal the pump, prime, verify the dose, fit the transport lock, fit the overcap, pack. Swapping the priming and locking steps is the costly error. A pack locked before priming reaches the user with a dry engine, and the first two or three presses produce nothing.

A few points apply at each stage.

• Filling. The dip tube displaces liquid. A bottle filled to a mark while open is overfilled once the pump is seated, so confirm the declared volume with the pump in place.
• Seating. A screw collar is pressed on; a crimp body is pressed and then crimped. Measure torque or crimp diameter with a calibrated gauge at first-off, mid-run and end of run.
• Priming. Done at the filling site. Record the number of strokes to first product on the specification.
• Dose check. After priming, by weight, with the real fill.

Transport locks

A lock is not optional on a mist pack. Handling and stacking can press an unlocked actuator and discharge product into the overcap, leaving a wet, half-empty bottle and a stained label. Air freight adds another route: the pressure drop in a cargo hold can draw liquid through the pump with no stroke at all.

Check overcap clearance with the lock fitted. A cap that fits a bare collar can foul once the lock is added.

Tests before the case is sealed

Pack tests cover leakage upright and inverted, vacuum or pressure for volatile fills, torque or crimp on a sample, and a transport simulation of the packed case that matches real handling; published procedures such as ISTA define standard levels for it. Mist tests cover weight per stroke after priming, priming stroke count, angle and pattern at a set distance, an even plume with no splitting or dripping, actuation force, return time and a durability count. Keep four lots on one record: glass, pump engine, gasket and fill.

Diagnosing a coarse, dead, slow or leaking mist

Most complaints fall into four patterns, and each can be narrowed down on a single unit without laboratory equipment.

Coarse or wet spray

Suspect the fill before the pump. A formula that has thickened, or one tested in a cold room, atomises poorly, and higher surface tension coarsens droplets in an unchanged engine. With the fill ruled out, look at an orifice partly blocked by dried product, an insert from a different engine, or an over-tightened collar gripping the body and shortening the stroke. A pinched or half-seated dip tube does similar damage from the supply side, since the chamber never fills and the pump sprays liquid mixed with air.

No spray, or sputtering

The pump is nearly always drawing air on its suction side. Possible causes:

• an under-torqued collar, so the gasket never compresses and air enters past the neck;
• a dip tube not pushed fully onto the pump inlet, which looks assembled and still leaks;
• a tube too short for the bottle, so its end lifts clear of the liquid when the pack tilts, or so long it seals against the base;
• a fill too viscous for the engine, giving a partly filled chamber and a gurgle;
• a valve element propped open by a particle or by dried residue from an earlier sample.

Check tube length and seating first, then prime with the real fill and listen. A draw that never reaches the nozzle points to the neck seal. A slow, gasping draw points to the tube or to viscosity. On a crimped pack, a failed ferrule seal shows the same symptom and is checked by crimp diameter.

Slow or absent actuator return

The commonest cause is an over-torqued collar that crushes the gasket and grips the body so the piston cannot return at full speed. Dried product in the chamber after storage, a spring meant for another grade and a cold fill also slow things down, because a thicker liquid takes longer to refill the chamber through the tube. Timing tells the causes apart. Slow from the first press means the closure or the engine. Slow only after weeks on the shelf, and getting worse, is the signature of a fill swelling the elastomer or piston.

Apparent leaks

Three different faults look alike.

• True leak. Product escapes the sealed path because the gasket is missing, displaced or inverted, the collar is under-torqued, or the land has a chip or seam the gasket cannot bridge. Wetness shows at the collar or shoulder and recurs across the lot.
• Weep, or neck creep. A low-viscosity fill climbs the thread and appears at the neck ring. This is a cosmetic fault, corrected through collar and thread geometry, not torque.
• Nozzle droplet. A drop left after each press points to cut-off and nozzle geometry.

One routine sorts closure faults from engine faults from formula mismatches. On the same unit, measure the gap between collar and neck land, prime with the real fill, watch where wetness first appears, and weigh the dose over a defined number of strokes.

Frequently asked questions

How do I choose between a fine mist sprayer and an ordinary spray pump?

Decide from the deposit you want. If the product should settle as a quick-drying, even veil, as a toner or hydrosol does, specify fine mist. If it is meant to wet the surface, as a starch, setting spray or room freshener does, the larger orifice of an ordinary spray pump is correct, and it also tolerates slightly thicker or surfactant-bearing liquids. Fills that do not pour freely at room temperature need a metered or airless engine.

Which neck finishes are available for fine mist sprayers?

Mostly the 18, 20, 24 and 28 series in 410 and 415 profiles, plus the 13 and 15 series for minis and samples. The 24 series offers the broadest choice of bodies and actuators and is the safest basis for a new bottle. Crimp-on bodies have no thread and are not interchangeable with screw pumps.

What output should a facial mist or body mist have?

Start from use. Facial mists and setting sprays commonly sit at 0.07 to 0.10 ml with a 35 to 50 degree cone. Hair and light body mists run a little higher, around 0.10 to 0.13 ml at 45 to 55 degrees. Room, linen and body mists meant to cover an area fast are around 0.13 to 0.16 ml with a wider cone. Remember that the number of presses in a bottle is fill volume divided by dose, less priming strokes and a small heel, so a bigger dose shortens pack life in direct proportion.

What dip tube length do I need if the bottle is already fixed?

Send us the bottle's internal height, not its capacity, and the tube is cut to end near the base without touching it. If the fill is at the thick end of what a mist engine can move, state a bore requirement too, since an undersized bore starves the chamber.

Can a fine mist sprayer take a sixty percent alcohol toner or a fragrance blend?

Usually, once the wetted materials have been selected for it. The glass and polypropylene are not the concern; the neck gasket and piston are. EPDM, silicone and thermoplastic elastomer gaskets are the usual candidates, and a metal-free engine exists for formulas that cannot touch metal. A soak test in the real fill settles the question. For highly fragranced, volatile mists a crimp-on body is often preferred, at the cost of reclosure and with crimping equipment needed on the line.

What information do you need to recommend a pump body and dip tube?

We need the following to propose a body grade, nozzle insert, finish variant and tube length together, and to check the expected spray count against fill volume:

• the neck finish code or a neck drawing, with standing neck height (say so if the neck is not yet fixed);
• the bottle's internal height, if the bottle exists;
• the fill's viscosity and density at filling temperature, and any alcohol or oil content;
• the deposit you want, in plain words, and the output per press if already decided;
• the destination market and sales channel;
• a fill sample and storage conditions where compatibility is in doubt, so a soak test can be run on the wetted parts.

Quantities, pricing and timing are quoted per project, since they depend on the finished specification, the drawing and the destination, not on the engine grade alone.
