Glass Bottle Spec Sheet: Align Factory, Brand, Standard

Three Documents Carry the Name Glass Bottle Spec Sheet

A buyer who asks three people for a glass bottle spec sheet will receive three documents that share almost no fields. This is not carelessness. The three documents are written by different organisations, for different decisions, and each one records only what its author is accountable for. Reading them as three versions of one document is what produces the impression that someone has got it wrong.

The first document is the factory specification, sometimes called a production sheet or a mould card. It is written by the plant that forms the bottle, and it exists so that the glass can be made, inspected and repeated. It is organised around the tooling: which mould number forms the container, which cavity, what the gob weight is, what the mould equipment set is, how the container is annealed after forming, and which dimensions are inspected with which instrument at which frequency. Its language is the language of the forming line. Dimensions appear as nominal values with tolerance bands, because nothing comes off a glass machine exactly on a number, and the sheet exists precisely to say how far off is still acceptable.

The second document is the customer specification, sometimes called a packaging datasheet or a product specification sheet. It is written by, or on behalf of, the brand that fills the bottle, and it exists so that the filling line, the closure supplier, the label printer and the logistics planner can all do their work. It is organised around use rather than manufacture: the fill volume and fill height the line will target, the headspace left for the product, the closure and its application torque, the label area and its artwork boundary, the packed weight and the carton dimensions. Its dimensions matter in terms of what they have to fit with, not in terms of how they are formed.

The third document is the industry reference table, published by a standards body, a trade association or an equipment maker. It is not about one bottle at all. It records commonly used dimensions for a family of containers so that a closure maker, a label converter or a filling line builder can design to a shared expectation. It states ranges and preferred values for capacities, neck finishes, body diameters and heights across a category, and it is the document that allows a buyer to ask for something that is not being invented from nothing.

The practical consequence is that a buyer who wants one authoritative sheet is asking for something that does not exist as a single artefact. What can exist is a project sheet that carries the three readings side by side and states which one governs each field. That document is the deliverable of the alignment work described below.

The Factory Reading: Mould Number, Weight, Annealing and Tolerance

The factory sheet is the most precise of the three and the least useful to a brand on its own, because everything on it is expressed in terms the plant controls.

A mould number identifies the container geometry and nothing else. Two bottles that look identical to a buyer can carry different mould numbers if they were cut at different times, from different drawings, or for different equipment, and a mould number is therefore the only unambiguous way for the plant to say which bottle is being discussed. The cavity arrangement that goes with it matters too, because a container formed in a multi-cavity mould is identical across cavities only within the tolerance band, and the inspection plan has to account for that.

Weight is the factory’s primary control variable. The empty weight of a glass container follows from the amount of glass that goes into the mould, and it is the quantity the forming line adjusts to keep the container forming properly. Weight is monitored because it drives wall thickness distribution, mechanical strength, annealing behaviour and the load on the machine. A factory sheet states a nominal weight with a tolerance band, and it is common for that band to be expressed as a percentage of the nominal rather than as an absolute mass.

Annealing is recorded because it decides whether the container can survive thermal shock and handling. The sheet will state the annealing condition as a process parameter rather than as a product property, and where residual stress is verified it may be checked by a polarised light method against an agreed limit. Annealing is invisible on a finished shelf but it is the item that most often explains why two visually identical bottles behave differently on a pasteurising or hot-filling line.

Every dimension on the factory sheet appears as a nominal value with a tolerance. The nominal is the target the mould was cut for, the tolerance is the permitted departure, and the pair together is the actual specification. A buyer who quotes only the nominal in a downstream document has removed the information that makes the number usable, and disputes that begin with the phrase but the drawing says follow from exactly that omission. The structure and typical shape of these bands are set out on the page covering glass bottle tolerance standards, and the reason it matters commercially is that the acceptance test at goods-in has to be written against a band, not against a line.

The Brand Reading: Filling Line Fit, Closure Match and Label Area

The brand sheet looks thinner than the factory sheet and is often harder to produce, because the quantities on it come from equipment the brand does not own.

Fill volume is the first divergence. The brand cares about the volume of product that will be delivered to the customer, which is a declared quantity on the pack. The bottle cares about the volume of the interior up to the fill height the line will use, which is a geometric property of the container. The two are connected by the fill point, and the fill point is decided by the filling machine, the product, the headspace the process needs and the finish the closure requires. A bottle quoted at a nominal capacity therefore does not guarantee a declared net content, and a brand sheet that treats the two as identical will eventually meet a label compliance problem.

Closure match is the second. The brand reads the neck as an interface: which closure body, which liner, which application torque, which removal torque band, which tamper evidence behaviour. The closure supplier reads it as a thread and a bead geometry with its own tolerance, and the factory reads it as a finish that is formed by a neck ring. Where the brand writes a finish name and the factory writes a finish drawing, both are correct and the pair must be reconciled before the closure is ordered. The full breakdown of finish geometry, thread form and the dimensions that closures are designed against is on the page covering glass bottle thread finish.

Label area is the third. The brand needs a printable band that is flat enough or predictably curved enough for the artwork to sit correctly, with a defined height and a defined circumference, and with a starting and ending point that can be found on the production line. The factory sheet has no reason to define a label area at all, because a label is applied after the container is made and usually by someone else. The label area is therefore a field that exists only on the brand sheet and only when the brand writes it down, which is why it is so often missing until the artwork stage.

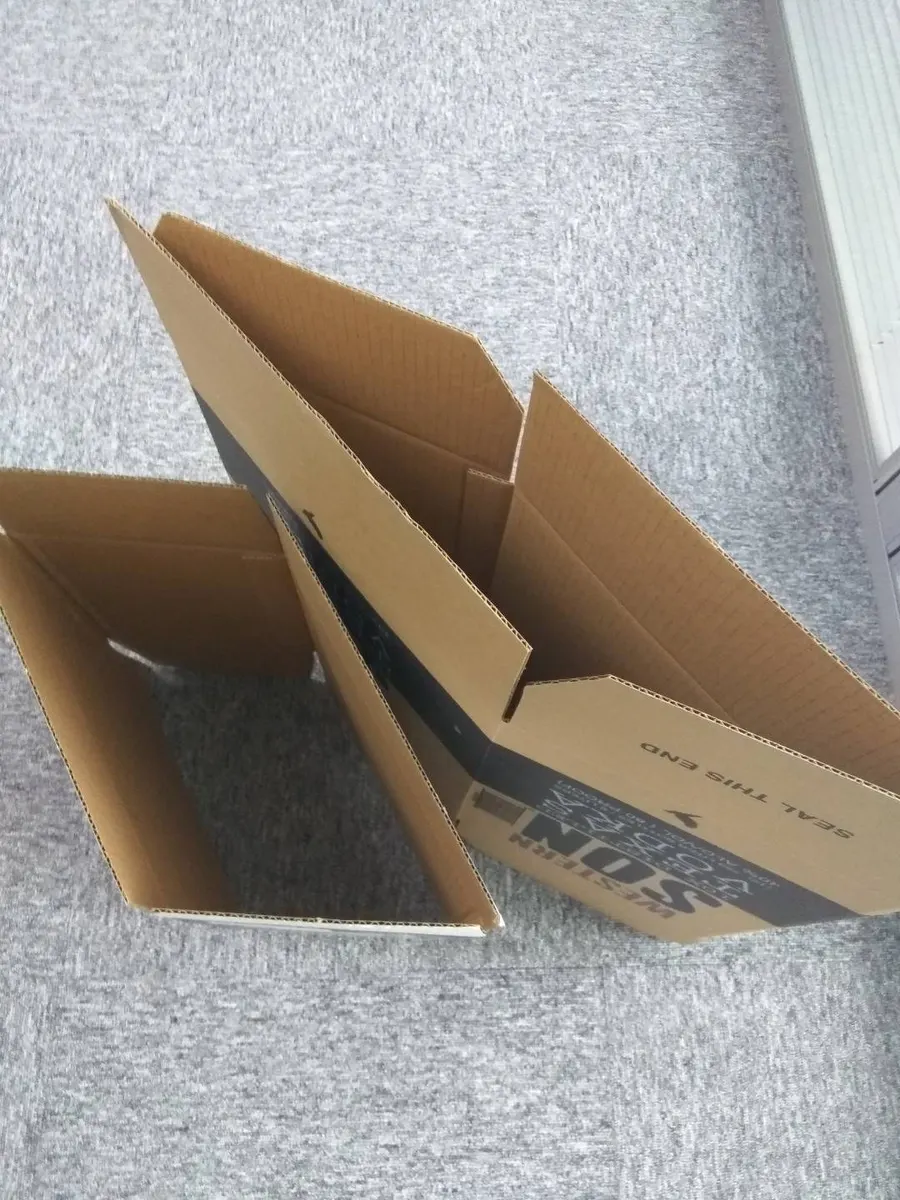

The remaining brand-side fields follow the same logic. Packed weight and carton dimensions come from the packing decision, not from the glass. Case count and pallet pattern come from the warehouse and the retailer. Tolerances on the brand sheet are usually acceptance limits inherited from the line rather than manufacturing bands inherited from the plant, and the two are rarely identical. That difference alone explains a large share of the arguments that happen at goods-in.

The Standards Table Reading: Generic Reference Values

The third reading is the one buyers reach for when they have no drawing and no supplier yet, and it is the most commonly misused of the three.

A standards table records what is common, not what is required. It publishes families of capacities, preferred finish sizes, typical body diameters for a category and typical overall heights, so that equipment and components can be designed around a shared expectation rather than around a single customer. It is enormously useful for framing a brief, comparing offers and checking whether a supplier is proposing something unusual. It is not useful as an acceptance document, because it describes a population rather than a delivery.

The specific misuse is to lift a value from a table and write it into a purchase order as though it were a factory commitment. A capacity drawn from a table, for example, is a nominal family value; the container that arrives will be formed to its own drawing with its own tolerance, and the two will not agree to the digit. The same applies to finish designations, which name a geometry family rather than a single manufactured thread, and to weight classes, which describe an intention rather than a measurement.

The correct role for the standards table is as the shared vocabulary that makes the other two documents comparable. It is where a brand finds the accepted name for a finish so that the request is understood by every supplier, where a buyer checks that a proposed capacity sits inside a normal band, and where a closure maker looks up the interface it already has tooling for. Standards tables also carry the sampling and acceptance frameworks that govern how a batch is judged rather than how a single unit is measured, which is a distinction that matters far more than most buyers expect. Frameworks of that kind, and the sampling plans built on them, are the reason a specification should state what a lot is and how many units are drawn from it.

The Purchasing Variables That Decide Which Reading Governs

Alignment is not a matter of picking a winner in advance. It is a matter of deciding, field by field, which organisation’s need has priority, and that decision is driven by a small number of purchasing variables.

• Whether the container exists or is being developed. On a stock container the factory reading already exists and is stable, so the brand reading has to be adapted to it, which usually means choosing a fill point and an artwork that suit the bottle rather than the reverse. On a new container the brand reading is the input and the factory reading is the output, and the negotiation runs the other way.
• Which party carries the liability. The field that the brand is legally accountable for, such as declared net content or label content, has to be governed by the brand reading even where the factory measurement is more precise. The field that decides whether a batch passes at goods-in has to be governed by a written acceptance criterion agreed before production.
• Whether the filling line already exists. Where the line and its change parts are fixed, closure and dimension tolerances must be tightened to fit the equipment, and that requirement has to travel to the factory in the language of the equipment. Where the line is being specified at the same time, the closure interface is the smarter place to fix the constraint, because it is the interface with the most standardised options.
• Whether the decoration is applied on the container or on a separate label. A directly decorated container carries its own print register and colour requirements and therefore adds fields to the brand reading that a pressure-sensitive label does not. That changes which sheet owns the positioning tolerances.
• Whether the programme will repeat. A one-off order can tolerate a loosely worded sheet, because both sides will be present at the same shipment. A programme that runs for years across several factories, several filling sites and several closure suppliers cannot, because the document becomes the only shared reference, and an ambiguity in it will be resolved differently at each site.
• The regulatory market the pack will be sold in. Where a market requires particular declarations, material statements or migration testing, those requirements enter the brand reading as mandatory fields and travel to the factory as evidence requests rather than as dimensions.

A buyer who can state those six variables in one message will get a far more useful response than one who sends a capacity and a colour, because the variables determine which of the three readings is the master document for the project.

The Three-Perspective Alignment Matrix

The matrix below is the working artefact for this page. Its purpose is to take the fields that appear in all three documents and state, for each one, what the two parties are really measuring, how a standards table normally expresses it, which reading governs when they disagree, and what wording removes the conflict. It contains no numeric values by design. Tolerance bands, wall thicknesses and weight classes depend on the container, the process and the market, and any number published here without those inputs would be quoted into a purchase order and cause the very dispute the page is written to prevent. The values must come from the confirmed drawing and the confirmed purchase specification.

Why the Three Sheets Disagree Without Either Being Wrong

Once the fields are laid side by side, most of the disagreements resolve into three causes, and none of them is a mistake by either party.

The first cause is a different datum. A height measured from the base to the finish top depends on what the base is and how the finish face is formed, and two parties can measure the same container honestly and obtain different numbers because one included the push-up and the other did not. A diameter measured at the widest point of a panel is not the same quantity as a diameter measured at the shoulder. The remedy is not to argue about which number is right but to write the measurement point into the document, so that the number and its datum travel together. Where the datum is missing on either side, no comparison is meaningful.

The second cause is a nominal value being read as an absolute. Glass forming produces a distribution of outcomes around a target, and the tolerance band is the specification. A brand sheet that asks for a dimension without stating a band is asking for something that cannot be inspected, because the inspector has nothing to judge against. A factory sheet that gives a nominal without a band has the same defect in reverse. Both sides benefit from writing the pair, and the acceptance framework that decides how many units are examined and what the lot is called is part of that writing.

The third cause is a different vocabulary for the same object. A finish may be named by one party, drawn by another and specified by a closure maker under a third reference, and all three may describe the same geometry. A capacity may be named as a trade name by the brand, as an interior volume by the factory and as a nominal family by a standards table. The remedy is a reconciliation step at the start of a project, where the three vocabularies are mapped once and the mapping is stored with the project, so that the mapping does not have to be rebuilt at every order.

A useful discipline follows from these three causes. Any field that appears in the sheet should answer four questions: what is being measured, where on the container, against what target, and with what acceptable departure. A field that cannot answer all four is not yet a specification, and it will be interpreted differently by whichever party reads it next. This is also why a single project sheet is more robust than three separate documents circulating in parallel, because the three readings only need to be aligned in one place and the alignment then holds for the closure supplier, the label printer, the filling site and the logistics planner at the same time.

Where This Page Stops and the Neighbouring Pages Begin

This page covers the difference between the three readings of a spec sheet and how to align them. It deliberately does not attempt to list the fields themselves, because a complete field list is a different deliverable with a different order and a different purpose, and it is set out on the glass bottle packaging spec page. That page is where a buyer should go to build the document from nothing, including which fields are mandatory, which are conditional and which belong to a separate annex.

The numeric side of what counts as acceptable is also out of scope here. The way tolerance bands are structured, how they are chosen and how a batch is judged against them belongs to the glass bottle tolerance standards page, and it should be read whenever the alignment work reaches the point of writing an acceptance criterion. The interface that runs through so many of the fields above, from the finish designation to the thread form and the closure match, is examined on its own terms on the page describing glass bottle thread finish. A buyer who is still choosing a container rather than describing one should begin at the page covering glass bottles, which is where the range of formats and the format selection logic sit.

Used together, those pages answer four different questions rather than four versions of one question. Which container should we choose, what fields should the document contain, what departure is acceptable, and how does the closure interface work. Keeping the four apart is what stops a specification from becoming a document that tries to answer everything and therefore settles nothing.

The Fields Where Spec Sheet Errors Cluster

Errors in a glass bottle spec sheet are not evenly distributed. A small number of fields account for most of the disputes, and they are predictable enough to be checked deliberately.

• Capacity without a fill point. A capacity written as a single number leaves the fill level undefined, so the volume actually delivered is decided on the line rather than in the document. Every downstream value that depends on capacity, from declared content to label compliance, inherits the ambiguity.
• Height without a datum. Small differences in how the base and the finish face are treated change the number, and the parties then compare two different quantities. This field produces more apparent contradictions than any other.
• Finish stated by name only. A finish designation names a family. Without the drawing, the thread form and the controlled dimensions are not pinned down, and a closure ordered against the name alone may or may not match the container that arrives.
• Circular or ambiguous references. Where the brand reference and the factory mould reference are both used loosely, a repeat order can be placed against the wrong geometry. The document should state which reference governs ordering.
• Label area left implicit. Because it belongs to neither the forming process nor the glass standard, it is the field most often missing until artwork is due, at which point the shape of the container may already be fixed.
• Weight written without a band or a balance. A mass without a permitted departure and without the weighing basis cannot be inspected, and a disagreement about whether a delivery is compliant then has no factual answer.
• A revision recorded in one place only. Where a changed dimension is updated on one sheet but not on the closure drawing or the artwork file, the change propagates as a defect rather than as a change.

A brief check against those seven items before a sheet is issued costs very little and removes most of the disputes that would otherwise surface at the filling line or at goods-in.

How a Revision Reaches Everyone Who Relies On It

A specification that changes is more dangerous than a specification that is wrong, because the wrong version has at least the merit of being consistent. The alignment work is therefore incomplete until the revision mechanism is agreed.

Every sheet should carry an identifier, a revision number, a revision date and an effective date, and it should state which previous revision it supersedes. The effective date matters because production and shipment cross it: a container formed before the change and shipped after it is not compliant with the new revision, and the document should say how that situation is handled rather than leaving it to be discovered. A short description of what changed is also worth carrying, because it allows a reader to judge whether the change affects their own work without comparing the whole document.

Distribution is the harder half. A change to a finish or to a controlled dimension touches the closure supplier, the label printer, the filling site, the warehouse and often a second production site, and each of those parties holds their own copy of the document. The practical arrangement is a single distribution list attached to the sheet, an explicit acknowledgement requirement for changes that affect a controlled dimension or an interface, and a stated consequence for working to a superseded revision. Where the interface is the thing that changed, the acknowledgement should come from the closure or component supplier as well, not only from the internal team.

Two habits make the mechanism work in practice. The first is to separate the commercial reference from the technical revision, so that a price change does not force a technical revision and a technical change cannot be hidden inside a commercial update. The second is to keep a retained reference sample from each approved revision, because a physical object settles questions that a document cannot: whether a colour is the same, whether a surface finish has drifted, whether a thread feels as it did. A retained sample plus a revision number plus a distribution list is a small amount of administration that prevents the commonest failure in a long-running programme, which is two parties working correctly to two different versions of the truth.

What to Send, and What to Ask Back

The alignment exercise begins with the buyer sending the two things only the buyer knows, and asking for the things only the factory can supply.

From the buyer side, the bottle shape and the use case are the starting point. The shape, meaning the capacity the product needs, the general profile and the format family, and the use case, meaning what will be filled into it, how it will be filled, how it will be closed, how it will be decorated and how it will be stored and shipped. Adding the filling line constraint and any market requirement the pack has to satisfy turns a general discussion into a specific one, because those two inputs decide which fields carry the tightest tolerances.

From the factory side, the useful requests are the drawing with its controlled dimensions and datum points, the mould and cavity reference, the tolerance bands that apply to the dimensions that matter, the weight with its band and weighing basis, the finish designation with its drawing, and the packing specification. It is also worth asking directly which fields the factory expects to govern and which it expects the buyer to define, because that question surfaces an assumption that would otherwise be discovered at the wrong moment. Where a standards table is being used as a reference, it should be named and its role stated, so that nobody treats a generic value as a commitment.

Sent together, a shape and a use case allow a factory to return a specification structure with the fields ordered by priority for that particular project, together with a note on which fields need the buyer’s input before the document can be considered complete. Sent as a capacity and a colour alone, the same request usually produces a price and a lead time and leaves the specification to be argued about later, which is precisely the sequence this page is written to avoid.

Frequently Asked Questions About Glass Bottle Spec Sheets

Why do a factory spec sheet and a brand spec sheet disagree about the same bottle?

Because they are measuring different things at different points and for different purposes. The factory sheet records what the forming process produces, expressed as a nominal value with a tolerance band and an inspection point, and it exists to make production repeatable. The brand sheet records what the container has to fit with, expressed as a filling, closing, labelling and packing requirement, and it exists to make use possible. A height measured from a different datum, a capacity read as a declared content, or a finish named as a family rather than a drawing will all create an apparent contradiction between two documents that are both accurate. The conflict disappears when each field states what is measured, where, against what target and with what permitted departure.

Which fields cause the most disputes in a glass bottle spec sheet?

Capacity without a stated fill point, height without a stated datum, and a finish given by name without its drawing. Those three account for most of the disagreement, and they share a cause: the number travels without its reference. Two further fields follow closely, namely an empty weight with no tolerance band and no weighing basis, and a label area that is left to be defined later. Where a revision has been made without being distributed to the closure, label and packing parties, the dispute reappears even after the fields themselves have been written correctly.

What is the difference between a nominal dimension and a tolerance?

The nominal is the target value that the mould and the process are aimed at. The tolerance is the departure from that target that is still accepted as conforming. Neither is usable on its own. A dimension quoted without a tolerance cannot be inspected, because the inspector has no basis on which to pass or reject, and a tolerance quoted without a nominal has nothing to be measured against. In glass, tolerances exist because forming produces a distribution of outcomes around the target, and the width of the band has to be chosen for the function of that dimension rather than copied from another field. The structure of those bands is covered on the page dealing with glass bottle tolerance standards.

How should a spec sheet state the neck finish?

By designation and by drawing together, never by designation alone. The designation names a finish family that closures are designed against, which is what allows a closure supplier to propose a standard product, and the drawing pins down the thread form, the bead, the controlled diameters and their tolerances. Where both are supplied, the closure supplier can confirm against a defined interface, and the factory can state which neck ring forms it. Where only the name is supplied, the two readings may diverge without anybody noticing until the capping head is set up. The interface itself is described in detail on the page covering glass bottle thread finish.

How do I reconcile the capacity on a spec sheet with what the filling line actually fills?

Separate the three quantities that the single word capacity is being used to carry. The interior volume is a geometric property of the container. The fill point is where the line is set to stop, and it follows from the product, the headspace the process needs and the closure. The declared content is the quantity on the pack that the brand is accountable for. The container document should state the interior volume to a named fill point with a tolerance, and the filling document should state the declared content and the headspace. Reconciling the two before the container is ordered protects the declared content, and it is far cheaper than discovering the relationship after the mould has been cut.

What is the right role for an industry standards table?

It supplies the shared vocabulary and the normal range. It is where a buyer finds the accepted designation for a finish, checks that a proposed capacity sits inside a familiar band, or confirms that a closure interface already exists in tooling. It is not an acceptance document, because it describes a population rather than a delivery, and a value lifted from a table and written into an order as a commitment will not be met to the digit. Standards frameworks are also where the sampling rules live, which is why a specification should state what constitutes a lot and how many units are drawn from it, rather than assuming that conformity is judged unit by unit.

How should a change to a spec sheet be communicated?

Through a controlled revision with an identifier, a revision number, a revision date and an effective date, distributed against a named list that includes every party whose work depends on the changed field. Changes to a controlled dimension, a finish or an interface should require explicit acknowledgement, and the sheet should state what happens to stock formed before the effective date. Keeping the commercial reference separate from the technical revision stops a price update from triggering a technical change, and retaining a reference sample from each approved revision gives both sides a physical standard to compare against when a question of colour, surface or thread arises later.

Send the Bottle Shape and the Use Case to Get a Spec Sheet Structure

The most useful reply a buyer can receive is not a price but a structure. Send the bottle shape and the use case together, meaning the capacity the product needs, the profile or format family that is being considered, what will be filled into the container, how it will be filled and closed, how it will be decorated, and how it will be stored and shipped. Add the filling line constraint if the line already exists, and add the market the pack will be sold in, because those two inputs decide which fields need the tightest control.

From that, a specification structure can be returned with the fields ordered by priority for that individual project, each field marked as either factory defined or buyer defined, and a short list of the inputs still missing before the document can be treated as complete. Where the project uses a published reference, its role can be stated explicitly so that nobody mistakes a generic value for a commitment, and where a closure interface is involved, the fields that the component supplier has to confirm can be identified at the same stage rather than at the capping trial.

Requests that arrive as a capacity and a colour usually come back as a price and a schedule, with the specification left to be assembled afterwards from fragments. Requests that arrive as a shape and a use case come back as a document with the three readings already reconciled, and the work that would otherwise be repeated at the closure drawing, the artwork file and the filling line is done once, in the right place, with the people who own each field present in the same conversation.
