A ROPP cap fits a glass bottle only when the neck carries a metal finish: a continuous thread, a retaining bead below it and enough finish height for the pilfer band to reach that bead. The cap is an unthreaded aluminium shell that the capping head rolls into the glass thread, so the shell is chosen from the neck drawing, the liner from the fill, and the settings from a trial on your own head. Choose it for a still product that is opened once and needs built-in tamper evidence; choose another closure family if the pack is carbonated or has to be re-closed for months.
How a roll-on closure differs from a screw cap
ROPP means roll-on pilfer proof, and the words describe a process. The shell reaches the line as a straight-sided aluminium cup with a plain skirt and an unformed band at its lower edge. After filling, the head pushes the shell down on the neck and steel rollers close in on the skirt while either the bottle or the head spins. The metal is forced into the glass thread, and the skirt's lower edge is tucked beneath a bead on the neck. No turning force tightens anything: the aluminium thread is a pressed copy of the glass one, and the seal comes from a liner squeezed against the top of the finish while the shell is held down.
A screw cap works the other way round. Its thread exists before it meets the bottle, and it is turned until the liner carries the chosen load, which makes application torque the thing you control. With a roll-on shell there is no application torque to speak of. You control roll force, roller position and the head load on the liner, and afterwards you measure two results: the torque needed to take the cap off and the load at which the pilfer band lets go.
Buyers gain a tamper-evident pack with very few components, a thin and light closure that can be printed over most of its surface, and a cap that adapts itself to the thread already on the glass. In exchange they accept a head that forms instead of turning, a shell that works once only, and a process that is only as good as the neck tolerance, since aluminium reproduces whatever the glass offers it.
Closures that are often mistaken for ROPP
Three other metal closures get confused with the roll-on cap, and each needs a different neck, a different head and a different sealing logic. If the family is still open, start with our overview of closure families for glass bottles.
- Crown cap. A fluted skirt crimped inward on a crown finish, sealed by a liner on the top face, levered off and never meant to go back on.
- Lug or twist-off cap. Pressed onto a neck with interrupted threads, sealed by plastisol flowed into the shell, released by a quarter turn and able to hold by friction when replaced.
- Aluminium-plastic combination closure. A crimped aluminium shell, deformed onto the neck like a vial seal, that carries a plastic disc or overcap for the user to handle. It does not unscrew at all.
The four parts of the closure you can specify
Sealing and tamper evidence come from four elements. Each one can be written into the closure specification on its own line.
Shell
The shell is a drawn aluminium cup, normally lacquered or coated on the inside and printed or coated on the outside, with an inside diameter a little larger than the finish it covers. Wall thickness and temper govern how it forms. A thin, soft shell needs little roll force and hugs the neck, so thread engagement is good and opening is easy, yet it dents in handling and holds less removal torque. A thicker or harder shell shrugs off dents and keeps a firmer thread, but it demands more roll force, may lift the band unevenly, and can score or split at the shoulder, where forming strain peaks. Agree diameter, height, wall thickness and temper as one set with the closure supplier; diameter by itself says too little.
Liner
The liner is a disc seated in the top of the shell and pressed onto the finish by head load. Nothing else in the assembly touches the product, and nothing else decides whether the pack seals. Its selection is covered further down.
Pilfer band
The band is the ring at the foot of the skirt, joined to the shell by a row of small bridges. In capping, a second roller follows the thread roller and tucks the band beneath the neck bead without breaking those bridges. Turning the cap snaps them, and the band stays on the neck. An unbroken band therefore tells the buyer that nobody has rotated the cap since it was applied. The band carries no pressure and seals nothing; it proves the cap has not moved and keeps the shell held down on the bead until someone opens it on purpose.
Bridges
Bridges are designed to be the weak point, which makes both extremes a problem. If they are too weak they break in capping or in transit, the pack arrives with its tamper evidence used up, and the resulting complaint cannot be disproved. If they are too strong, removal torque climbs until a consumer needs a tool. Treat bridge count, bridge section and cutting method as specification items, and confirm release behaviour on the real neck with the real head, not on a bench.

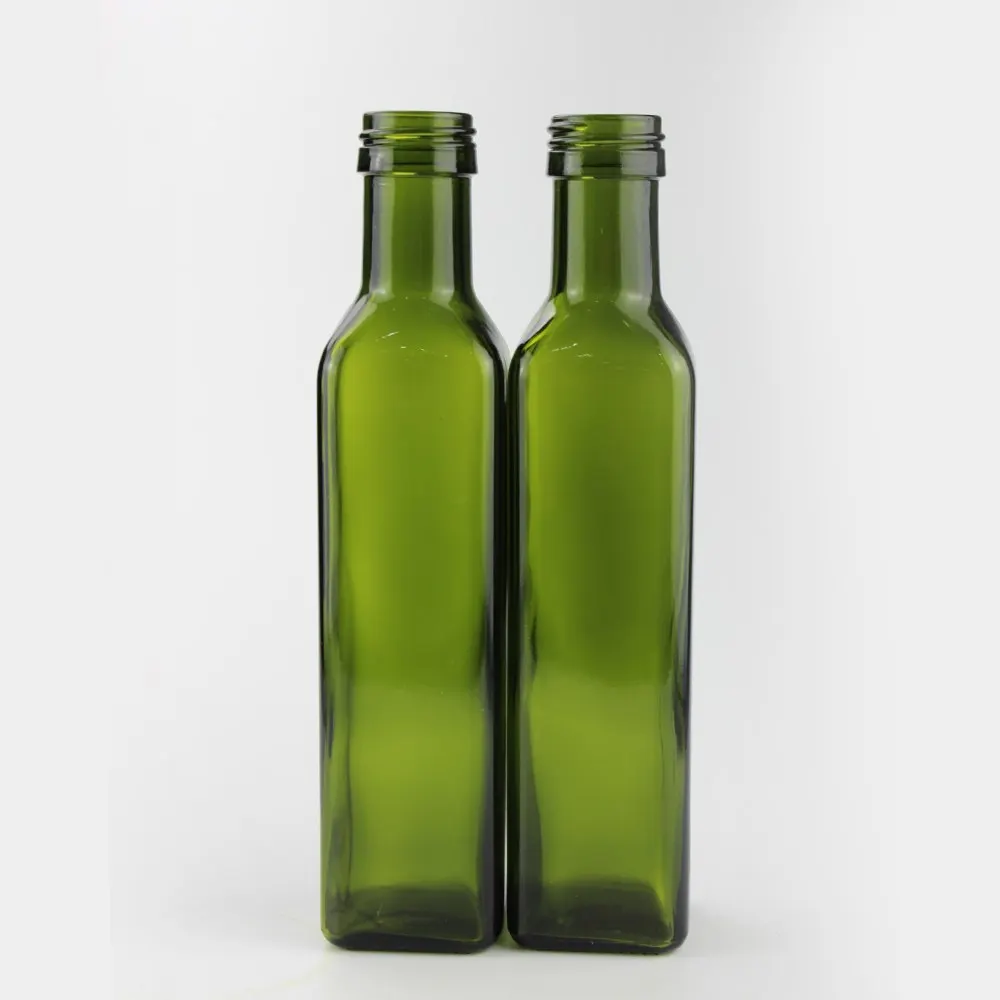

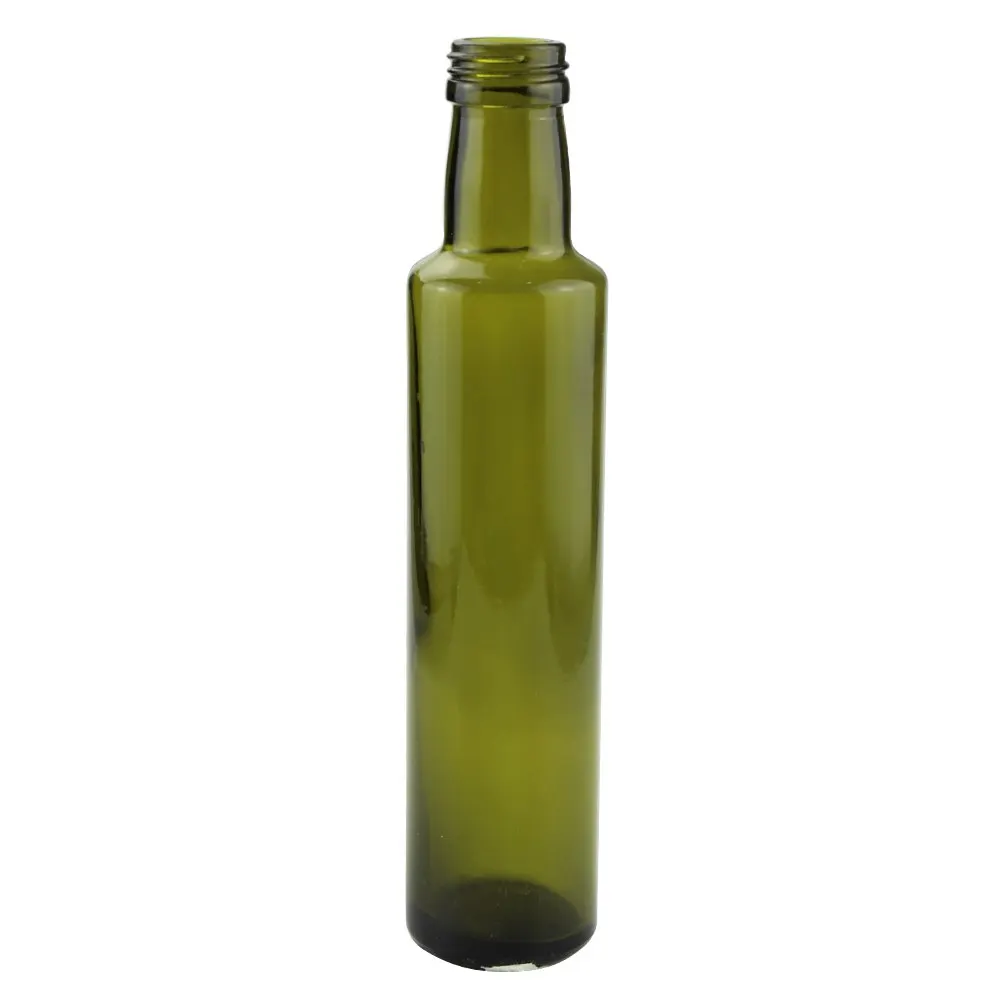

What the neck finish must provide
Start by identifying the finish series. Metal finishes form their own series, separate from the continuous-thread finishes made for plastic screw caps, and the two cannot be swapped even when the millimetre figure in the code is identical. A 24 mm continuous-thread neck and a 24 mm metal-finish neck have different thread forms, retaining features and heights, and a shell drawn for one will not roll properly on the other. Glass packaging bodies publish the dimensions behind these codes, the GPI finish standards among them, but the dimensions of a given bottle are taken from its neck drawing and never inferred from the code.
Four features of that drawing decide whether a shell can be formed on the neck.
- Thread. Normally continuous, with a defined pitch and depth, because the aluminium is pressed into it and has to stay there. Too shallow, and the formed thread barely engages, so the shell unscrews too readily and may lift under vibration. Too deep or locally too steep, and the metal is strained at the shoulder.
- Retaining bead. Also called the transfer bead, it sits at the base of the finish and is what the band tucks under. Its diameter and its distance below the thread determine whether the band is gripped, left slack, or pushed down and deformed. When the bead is absent, worn or undersized, the shell can lift, and that is a sealing failure, not merely a tamper failure.
- Finish height. Measured from the top face down to the bead. The shell must cover it, the thread must be formed along it, and the band must get under the bead. On a short neck the band ends up above the bead and cannot be tucked. On a neck too tall for the shell, the liner is compressed before the band is seated, and forming either crushes the shell or leaves a loose band.
- Bore. It governs what the filling nozzle can do and how the product pours, and it is decided with the glass, ahead of the closure. A roll-on cap goes on narrow and wide bores alike and alters neither. With a thick fill or a fast pour, the bore is the limit, so a buyer hunting for a wider cap often needs a different neck instead.
Tolerance matters as much as nominal dimensions. Thread position, bead diameter, finish height and neck verticality all shape the formed cap. When a line runs cleanly on one bottle delivery and leaks on the next, the usual explanation is drift in the finish, not a changed closure. For that reason we keep the neck drawing and its agreed tolerance band in the closure file as well as the bottle file.
Cap diameter classes and the finishes they roll onto
The lookup below runs from neck to closure, since the neck and the fill are your inputs and the cap is the result. It deliberately omits thread dimensions, bead diameters and roll settings. Those are read from the finish drawing and set on the machine; a figure printed here without a drawing behind it would end up on a closure order and cause the next leak. For a specific bottle, the numbers come from the confirmed drawing, the confirmed fill and a capping trial on your own head.
| Cap class and finish | Finish requirement | Typical packs | Usual liner | Forming and release | First point of failure | What a diameter change affects |
|---|---|---|---|---|---|---|
| Small shell, narrow metal finish (miniature and sample class) | Short finish, shallow thread, distinct bead near the shoulder, almost no spare height for the band | Miniatures, samplers, trial sizes, small spirit or essence bottles that are poured, not stored upright | Thin expanded polyethylene disc, the lightest grade used | Light roll on a short skirt; a short turn opens it and the band remains below the bead | Band: little neck to tuck under, and a small bead offers little grip | Roller height and roll depth above all, given the short skirt and small band travel |
| Small to medium shell, standard narrow metal finish | Continuous thread of defined pitch, full bead, height sufficient to form the thread and reach the bead | Spirits, liqueurs, syrups, sauces, still beverages in single-serve and small retail sizes | Expanded polyethylene; faced barrier liner for fills sensitive to oxygen or aroma loss | Thread roll, then band roll; bridges break on opening and the band stays put | Shell shoulder, which scores or splits when the roll is set too deep | Roller positions, head stroke and shell feeder parts; liner diameter follows the shell |
| Medium shell, the most common metal finishes for glass | Well-defined thread, bead of consistent diameter, height that keeps the band off the shoulder | Classic spirits and wine-adjacent bottles, juices, vinegars, premium sauces wanting a dressed closure | Expanded polyethylene by default; foil or coated barrier liner where oxygen, light or aroma is critical | Two-stage roll; bridges break and the retained band serves as tamper evidence | Retaining bead placed too high or too low, giving a loose or deformed band | Complete head tooling set, roller settings, shell handling path, and a fresh neck drawing check |
| Large shell, wide metal finish | Deeper thread, robust bead, height that carries a taller band without fouling the shoulder | Larger spirit bottles, oils, premium sauces, gift packs where the cap is part of the look | Expanded polyethylene, often thicker so the larger land is filled without added head load | Two-stage roll with longer band travel; bridges break, band stays behind | Bridges: longer travel loads them harder and a heavier shell resists the roll | Wall thickness and temper usually need review, as a bigger skirt takes more roll force |
| Shell on a wide finish with an interrupted or bevelled retaining feature | A feature that still lets the band tuck fully and continuously although the bead is no simple ring | Decorative and faceted bottles with a shaped or part-bevelled finish | Expanded polyethylene cut to the shaped land where that land is not circular | The roll must track the shape; bridges release and the band remains | Lining seat: a round-cut liner fails on a shaped land | Shell tooling, head rollers and liner die; a round-pocket change does not cover a shaped neck |
| Shell on a finish for hot filled and pasteurised packs | Thread and bead that hold while the pack cools and draws a vacuum; height that keeps the band clear | Pastry sauces, preserves, condiments, anything filled hot or pasteurised once closed | Selected for heat and vacuum as much as for the fill, since compression must return after cooling | Normal forming; release torque climbs as vacuum develops and squeezes the liner harder | Liner, which sets under heat and vacuum and stops recovering | Liner grade and head load; shell geometry often stays constant across the range |
| Shell on a finish for pharmaceutical and medicinal glass | Tightly controlled thread and bead, so every unit forms alike on an often sensitive fill | Tinctures, medicinals, essential oil blends, packs where the closure is a compliance item too | Chosen strictly by fill, often a barrier-faced disc in place of plain expanded polyethylene | Controlled head; bridges release and the band acts as single-use indicator | Thread form: slight variation shifts removal torque inside a narrow window | Roller settings, head load, liner specification; neck tolerances tighten as well |
Choosing the liner for the fill
Pick the liner by product, not by cap. It has three jobs to do simultaneously: stay chemically compatible with the fill for the whole intended shelf life, spring back after the fill cools instead of setting permanently, and supply whatever barrier the product requires. Miss one and the pack is tight on filling day but not on the shelf. Our cap liner page goes deeper into disc materials, thickness and compression; the table here is limited to what a roll-on shell normally carries.
| Liner type | Behaviour | Where it fits | Limit to watch |
|---|---|---|---|
| Expanded polyethylene (EPE) | Soft foam disc, closed or partly closed cell, strong compression recovery for its thickness, simple to insert | The reference choice for still packs, spirits and most beverages; compatible with water and with alcohol at spirit concentrations | Weak barrier: aroma escapes and oxygen enters, so critical products move to a faced or barrier liner |
| Solid polyethylene or denser PE foam | Needs more load to compress and recovers faster | Heavy shells, firm rolls and long band travel, where it keeps compression better | Less compliance, so it forgives less bottle-height variation; with a wide neck height band the softer disc survives |
| Barrier liner (foam or pulp backing faced with aluminium foil or coated film) | Facing provides the barrier, backing provides the compression | Fills sensitive to oxygen, light or aroma loss, and products with aggressive components such as essential oils | Facing and backing must be specified as a pair |
The common error with barrier liners is to name the facing and take whichever backing the closure supplier stocks. The result is unknown compression behaviour on a pack whose head load was tuned for the previous liner.
Raise two compatibility points early, because they can change the closure and not just the disc. One is high-alcohol or solvent-bearing product: confirm the liner against the actual fill, not its category, since a disc that suits a forty per cent spirit may fail with a concentrated flavour or an oil-based extract. The other is hot filling, in which the liner is compressed warm and must recover while the pack cools and draws a vacuum. A disc that sets under heat lets the pack weep weeks afterwards, and no head adjustment can cure that.
For beverages, spirits and food, evidence usually takes the form of a food-contact statement for the specific liner grade, referring by name to frameworks such as FDA 21 CFR, EU 10/2011 or EU 1935/2004, plus LFGB for some European markets. Check that it names the grade to be supplied and the part concerned. A statement written for the shell does not extend to the liner automatically.
What the capping head has to do
A roll-on head differs from a screw capper in three functions. It needs a presentation device, typically a chuck, collet or pressure pad, to keep the shell centred and pressed onto the liner during rolling. It needs a thread roller and a band roller at minimum, or one profiling head doing both in sequence, each adjustable for depth and for height on the skirt. And it must support the bottle: usually a platform or pedestal lifts it so the neck is backed from below against the sideways roller pressure, while a neck guide or top hold-down stops it deflecting. Load control and the verification step are described on our glass bottle capping machine page.
Head load sets liner compression, and it acts before and during rolling, not as torque. Set it against the bottle height band and liner thickness jointly. With too little, the liner is under-compressed and the shortest bottles leak while average ones seal. With too much, the liner is crushed and loses recovery, and a thin shell may have its skirt distorted before a roller arrives.
Faults the head cannot correct
Three problems are routinely blamed on the machine and are not machine problems.
- A glass thread that is too shallow. Aluminium copies only what exists, so the cap spins off too easily at any roller setting.
- A finish height that strands the band above the bead. There is nowhere to tuck it, and the remedy is a shell of another height, not another setting.
- A liner unsuited to the fill. Once it has set or been attacked by the product, no load adjustment brings it back.
Cap presentation and line speed
Shells must reach the head upright, undented and dust-free. A dented shell forms unevenly, and a speck of dust on the liner becomes a leak path locked in place. Feeders, orienting tracks and escapements are closure-feeding equipment and a subject of their own. Speed matters because forming requires a set dwell time on the neck. Above design speed the rollers have less contact time, and the thread is left partly formed while looking fine until the cap comes off.
Why roll-on caps leak in transit
A shell and a neck work together when four things are true at once. The finish is a metal finish from the same sub-series the shell was drawn for, so pitch, bead and height agree. The glass thread is deep enough to engage and shallow enough to form cleanly, so the rollers need not strain the shoulder. Finish height puts the bead within reach of the band travel. And the liner compresses enough to seal under the load the machine can deliver, recovers once the fill cools, and is not so thick that it keeps the band off its seat.
When a pair leaks, the symptom shows up long after the cause, and the cause falls into one of four groups.
| Cause | What happened at capping | How it shows up |
|---|---|---|
| Under-rolling | Roll force or depth set light; thread partly formed, band not fully under the bead | Tight at filling, leaking a week later as the shell lifts and the liner relaxes. The cap comes off with almost no effort, yet the band usually looks intact, so the customer finds it before the line does |
| Over-rolling | Thread rolled too deep; shoulder scored or split; bridges stressed or part-broken | Tamper evidence partly spent on arrival, or a shoulder split that opens under vibration. The cap is stiff before anyone has touched it, or the band comes off with the shell. A related fault is a band rolled over the bead twice when head and bottle are out of time |
| Finish out of tolerance | Bead smaller than drawn, thread shallower at one point of the circumference, or finish height varying bottle to bottle | A leak rate that changes with each delivery instead of one isolated leak |
| Head load and verticality | Bottle not square on its support, or bottle height spread across the band, so compression differs unit to unit | Average bottles seal; tall or short ones leak |
Out-of-tolerance finishes are the hardest to pin down, as the closure itself is blameless. Measure the necks of the leaking bottles instead of inspecting caps, and file those measurements with the complaint under the delivery reference. Likewise, bottle height and verticality bands belong in the closure specification, not only in the bottle specification, because they set how much load the liner actually receives.
Single use, re-closure and the alternatives
Most brands pick a roll-on cap for its pilfer band, and the band is also why the cap works once. After opening, the band will not reattach, and aluminium that has been formed on the glass will not form a new seat. Anyone wanting to shut a part-used bottle needs a stopper, a pourer or a replacement cap.
That makes the format a good match for single-use and single-serving packs, gift packs, and any product where proof of first opening outweighs re-closure. It is a poor match for refillable or returnable bottles, which would need a new shell on every trip, and for products opened and shut repeatedly, like a table sauce or a cooking oil kept on a shelf for months.
Screw cap with a shrink sleeve
For a re-closable pack the usual route is a plastic screw cap plus a separate tamper feature, most often a shrink sleeve or shrink band applied over the cap. The choice between this and ROPP is about consumables and equipment, not closure quality.
| Point | Roll-on cap | Plastic screw cap plus sleeve |
|---|---|---|
| Tamper component | None extra; the band is part of the cap | A sleeve or band on every unit |
| Re-closure | Not possible | Yes |
| Line equipment | Roll-on head | Ordinary capping head, plus sleeve applicator and shrink tunnel |
| Recycling | Single closure material | The sleeve is a second material to separate before the bottle is recycled |
Where a market imposes packaging waste obligations, that second material is a reporting item for the brand, not for the closure supplier. Weigh it before the pack is frozen.
Plastic screw cap with a bridged band
One more option is easy to overlook. A plastic screw cap with its own bridge-attached band shows first opening just as a roll-on cap does and can still be re-closed. The price is a neck finish outside the metal series, so the decision is as much about neck and head as about caps, and it belongs before the bottle order.
Crown and lug families
Four questions sort the families: how the pack is opened, whether it is re-closed, whether it is carbonated, and whether it is processed after filling. Crown caps are standard on carbonated beer and soft drinks, holding pressure with a crimped skirt and liner; they are not re-closable and not a presentation closure. The finish series and crimping are covered on our page on crown caps for glass bottles. Lug or twist-off caps suit jars and pasteurised or retort packs, re-close after a quarter turn, and on a vacuum pack the lid visibly indicates the seal; see our lug cap and twist-off lid page. ROPP is for a non-carbonated pack, opened once, where a formed aluminium shell adds presentation value or labelling area.
Reordering or substituting a cap on existing glass
Fixed glass means a fixed finish, and any replacement must come from the same finish series. Repeat orders go wrong when the record is a photo and a diameter, since two shells can look alike and roll differently. Keep at least the following:
- finish code and neck drawing reference;
- shell diameter, height, wall thickness and temper;
- liner material, thickness and grade;
- bridge count and band configuration;
- printing or lacquer reference;
- head settings from the original validation: roll depth, roller height and head load.
With this record a repeat order can be compared with the original, and a dispute over opening feel is settled with data. Two changes call for re-validation, not simple substitution. A new shell supplier brings different drawing tolerances, lacquer or temper, which alters forming and retained removal torque even at the same nominal diameter and height. A new liner, even from the same material family, behaves differently under a head load that was tuned to one grade and thickness; a denser or thicker disc needs a different load.
Changing print, colour or outer lacquer generally leaves the seal alone, as forming dimensions are untouched, though a different surface finish can alter how shells behave in the feeder. Whatever the change, verify it the same way:
- Assemble on the actual neck.
- Measure removal torque at the low and high ends of the intended setting.
- Run a side-lay or inverted hold test for the intended storage period.
- Confirm the bridges release without the band lifting free.
- Inspect the formed shoulder for scoring.
Never change glass and closure together. Doing so makes it impossible to say which one altered the leak rate or the opening feel, and it is the most frequent reason closure projects stall.
What to send us for a closure match
Three inputs come only from the buyer, and they are most useful sent together. We check them against the drawing, propose a cap diameter, shell specification and liner grade, and list the checks to run on the real neck. Commercial terms follow from a confirmed neck drawing and a confirmed fill, so they are settled per project on enquiry.
- Neck. Finish code and drawing; thread and bead diameters; finish height from top face to bead; bore; bottle height; and the tolerance band on each figure.
- Fill. What the product is; whether it contains alcohol, oils, essential oils or solvents; hot or cold filling; pasteurisation after closing; and whether oxygen, light or aroma loss matters over shelf life.
- Closure requirement. Cap diameter class and shell height if already fixed; any specific print or outer finish; single-use band or re-closable pack; and the capping head on the line, including its roll-on rollers, the load it holds and the line speed.
The finish selects the shell. The fill selects the liner. The tamper and re-closure requirement decides whether ROPP is the right family at all, and that is best decided ahead of the bottle order, since switching family normally means a new neck finish and therefore new glass.
Tell us also what the pack must survive. A bottle shipped upright in a carton treats its closure differently from one lying sideways in a display tray. An inverted pack rests the full weight of the fill on the liner, which raises the importance of liner grade and head load. Stating the orientation, and how long the pack will stand unopened, turns a cap diameter into a specification that still seals at the end of the journey.
Frequently asked questions about ROPP caps
What does ROPP stand for, and how does the cap come off?
Roll-on pilfer proof. The consumer simply twists the cap; this snaps the bridges linking band to shell, and the band stays on the neck as evidence of opening. The band is not what seals the bottle.
Is a roll-on cap just a metal screw cap?
No. A screw cap is supplied with a moulded thread and tightened to a torque, whereas a roll-on shell gets its thread from the head and the glass. They also belong to different finish series, so a matching millimetre figure does not make the necks interchangeable.
Can the cap be replaced once the bottle is open?
It will not reseal. The broken band cannot be rejoined and the formed thread does not make a fresh seat, so a part-used bottle needs a stopper, pourer or new closure.
How do I identify the neck finish a roll-on cap requires?
Read it off the neck drawing. Ordering a shell against a millimetre figure with no finish code is the commonest reason a cap looks right on the neck and still fails to seal.
Which liner should I specify?
EPE for still products and spirits unless the fill is sensitive to oxygen, light or aroma loss or contains aggressive components, in which case a faced barrier liner with a specified backing. Hot filled packs additionally need a disc proven to recover after cooling under vacuum.
What do you need from me to propose a ROPP closure?
The neck finish code and ideally the drawing with tolerances, a description of the fill and how it is filled, the closure requirement, and details of the capping head. Cost and timing are worked out per project and depend on shell specification, liner grade, decoration, quantity and freight terms.
