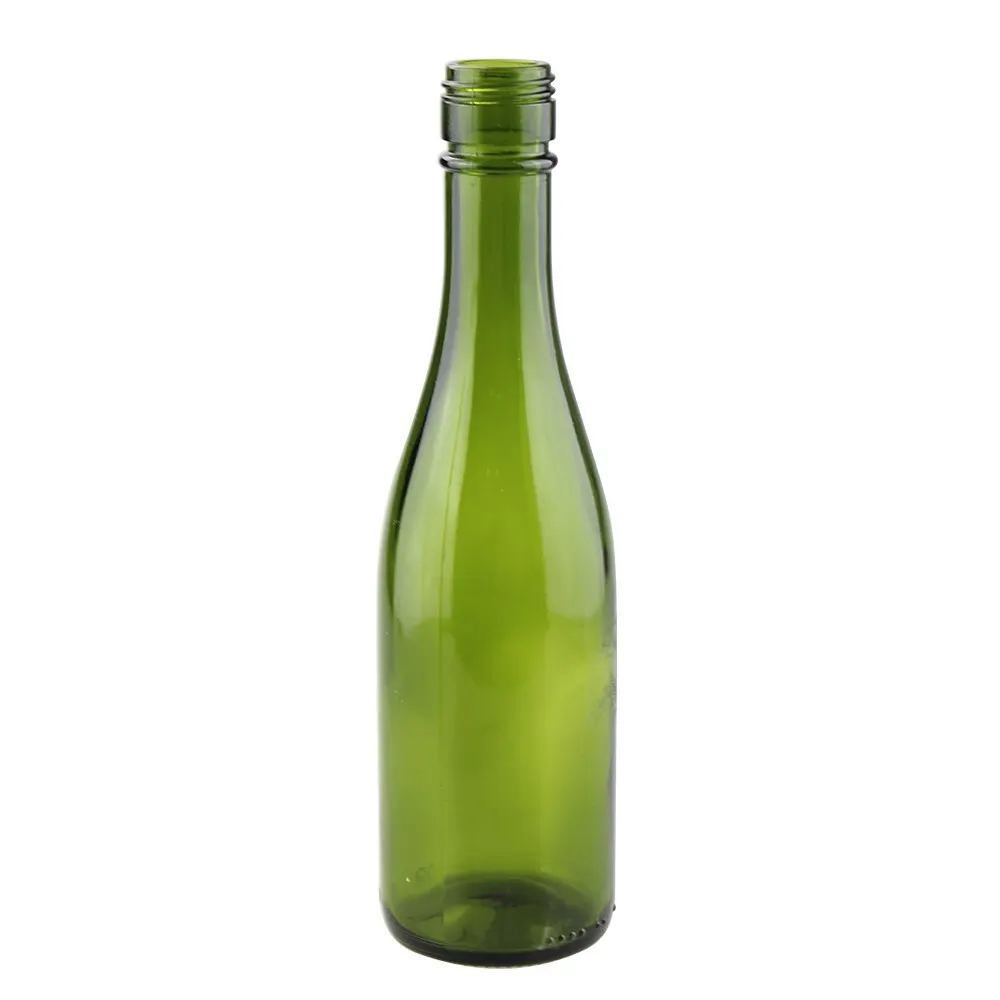

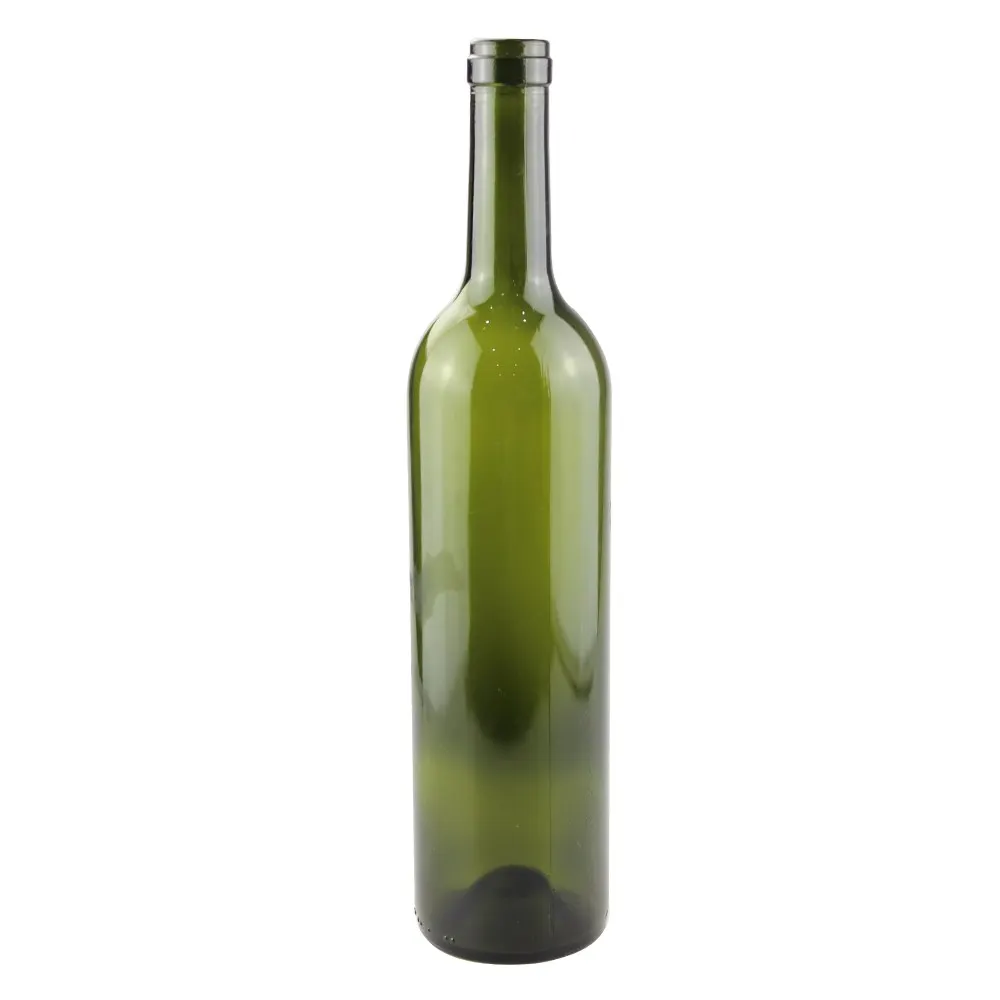

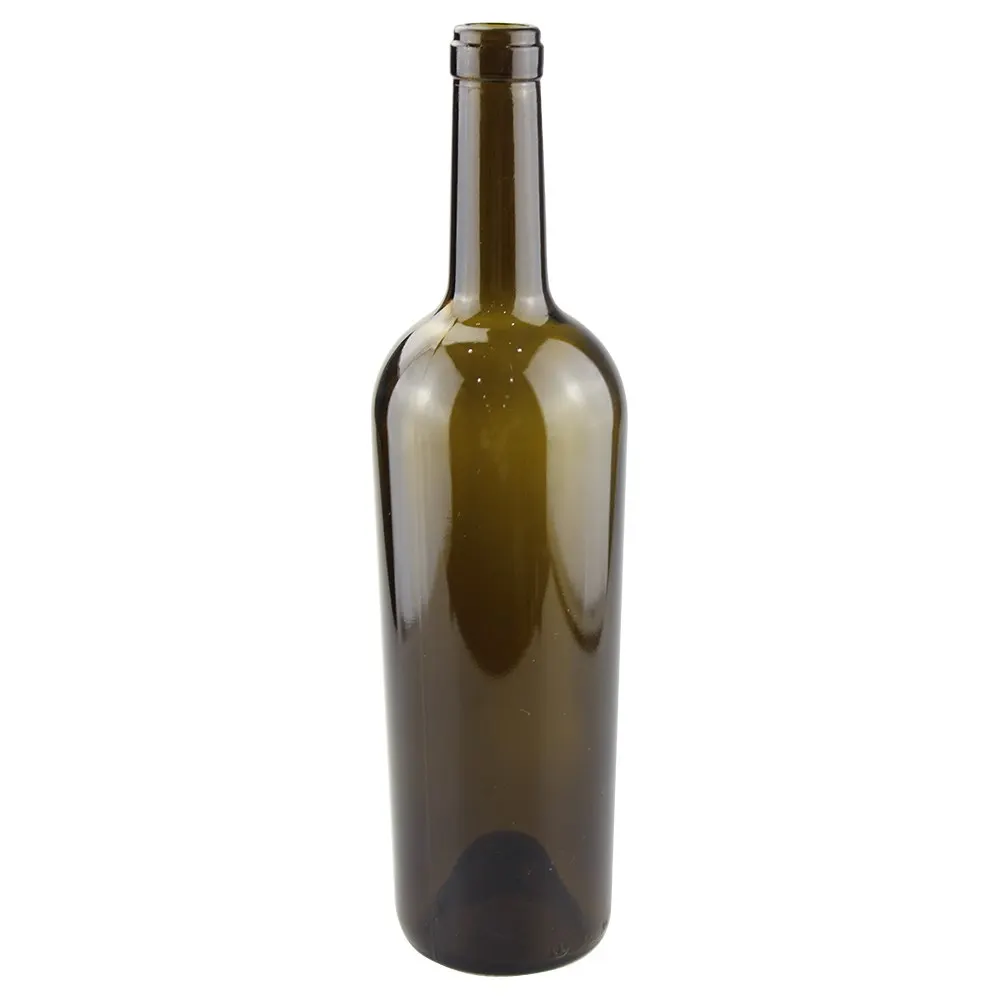

Filed under bulk wine bottles; the moulds we quote for this are pictured at the foot of the page.

What a Wine Bottle Capsule Has to Do Beyond Looking Finished

The capsule is the small sleeve that covers the top of the neck, the cork and usually the collar of the bottle. Buyers tend to think of it as decoration, and decoration is certainly part of the job, because the capsule is the only element of the pack that is visible on a shelf at eye level in a rack where the label may be turned away. But it carries three other duties that decide whether it will survive the journey. It protects the cork and the top of the neck from dust, insects and cellar mould. It provides a first tamper indicator, because a capsule that has been cut, rotated or perforated is visible evidence that the bottle has been opened or interfered with. And, especially on sparkling wine, it has to coexist with the wire cage and the crown cap without interfering with the removal sequence.

That combination is why the capsule cannot be chosen from a colour swatch alone. A material that prints beautifully may shrink unevenly at the crown. A material that shrinks perfectly may not accept a metallic foil stamp without flaking. A material that does both may smell of solvent inside a closed gift box, or may fail a food-contact declaration in the destination market. The working method that avoids most of this is to decide the material and the fixing method first, then design the decoration inside what that material can carry, rather than drawing the artwork first and searching afterwards for a process that reproduces it.

The Customisation Dimensions of a Wine Capsule

A capsule brief has five variables, and each one constrains the others. The first is material, which sets the appearance, the shrinkage or crimping behaviour, the food-contact documentation and the market perception. The second is geometry: the length of the skirt, whether the capsule is straight or shaped over a collar, whether the top disc is flat or slightly domed, and whether a tear strip or perforation line is included. The third is decoration, meaning the number of colours, whether a metallic effect is needed, and whether the brand mark should be printed, foiled, laser-marked or embossed. The fourth is finish: gloss, matte or a soft-touch lacquer, which changes both the perceived quality and how easily the surface scuffs.

The fifth variable is fit, and it is the one that causes the most avoidable production problems. A capsule has to clear the widest part of the neck it passes over, which is normally the collar or the bead below the mouth, and it has to end at a deliberate point on the neck or the shoulder. If it is measured only against the cork or only against the mouth, the skirt will be too tight at the collar or too loose everywhere else. The measurement is taken from the actual bottle: the collar diameter, the height from the top of the mouth to the point where the capsule should end, and the height the cork protrudes above the mouth. Bottles described in the market as Bordeaux wine bottles, or as Burgundy, Alsace or Rhone shapes, differ in collar geometry even when their nominal capacity is identical, so the capsule is always specified against a bottle sample rather than against a capacity.

PVC, Polylaminate, Tin Foil and Aluminium: What Each Material Family Can Do

PVC is the traditional heat-shrink capsule material and is still the most widely used. It shrinks over a wide range, it takes ink well, it is available in a large number of colours, and it can be produced at a low unit cost. Its weaknesses are environmental and regulatory rather than mechanical: it contains chlorine, it is difficult to recycle in the streams most markets operate, and a number of buyers now exclude it by policy for that reason. It also carries plasticiser, which is the component that has to be declared for food contact and which can migrate, so the grade and the declaration matter as much as the colour.

Polylaminate is a laminate, usually built around a polyethylene layer with an aluminium foil layer and often an outer lacquer, and it is the material most buyers move to when they want a richer look without moving to metal. It shrinks less aggressively than PVC, which makes it more forgiving over a shaped collar and reduces the risk of crown deformation, and it holds a metallic appearance without a full foil layer. It is generally the material of choice for premium still wines and for many export programmes where a PVC-free pack is preferred. It costs more per unit than PVC, and the decoration process options are narrower because the film has to be printed before lamination.

Tin foil and aluminium are the two metal routes and they behave differently from any film. A tin capsule is normally supplied as a shaped shell with a top disc and is fixed by crimping rather than by heat, which produces the tight, slightly faceted look associated with classic high-end bottlings. Aluminium capsules are crimped the same way, take embossing and debossing very well, and are the usual choice when the brand mark has to be felt under a thumb rather than seen. Both metals are effectively opaque and both are heavier, so freight and handling differ. Historically tin capsules contained lead alloys, and packaging heavy-metal limits in the European Union now restrict that, so the alloy composition and the food-contact declaration must be confirmed rather than assumed.

A fifth option sits between the families: PVC-free shrink films based on PET-G or similar copolyesters. They shrink more moderately than PVC, print cleanly, and answer the disposal objection without moving the pack to metal. Their practical constraint is that the shrink window is narrower, so the tunnel settings have to be established carefully for the specific bottle rather than copied from a PVC job.

Shrink Applied and Crimped On: How the Capsule Reaches the Neck

Heat-shrink capsules are applied as a tube or as a formed sleeve that is placed over the neck and then shrunk in a tunnel or by a radiant or steam source. The capsule must be shrunk enough to grip the neck and to follow the collar, but not so much that the film is pulled thin at the crown, where the geometry is tightest and where the printed top disc is most visible. The variables that a line operator actually controls are the tunnel temperature, the dwell time, the position of the capsule before shrinking, and the airflow around the head. Because those settings are specific to the film, the bottle and the machine, a new capsule is always proved on a run of real bottles before the production order is packed.

The heat is applied to the neck after the wine is in the bottle, so the amount of energy that reaches the wine is a legitimate concern. In a correctly set tunnel the exposure is brief and the wine in the body of the bottle does not change measurably, but three situations are worth avoiding. Overheating the tunnel can raise the headspace pressure and, on a lightly sparkling or warm-filled wine, push the cork fractionally. Heat applied twice, once at the filler and again after a re-work, doubles the exposure. And a nozzle that plays on one side of the neck produces an uneven shrink that leaves a wrinkle precisely where the brand name sits, which is the defect buyers notice first.

Metal capsules follow a different logic. Tin and aluminium shells are placed over the neck and crimped by a spinning head, which rolls a set of wheels around the skirt and presses it into the neck profile. No heat is used, so there is no thermal exposure and no shrink-related distortion, and the resulting surface follows the neck closely enough that embossed detail stays crisp. The trade-off is that the size has to be matched to the neck format more precisely, because a metal shell cannot stretch to cover a collar it was not made for, and the crimping head needs the right profile wheels. Small lots can be crimped with a hand tool, which is one reason aluminium remains popular for limited bottlings. Sparkling wines add a further constraint, because the capsule has to cover or interact with the crown cap and the wire cage on shapes such as brut wine bottles, and the removal sequence has to be tested with the cage in place rather than on a still-wine neck.

Decoration Techniques That Survive Handling and Transport

The decoration route should be chosen from the volume and the artwork, not from the material alone. Rotogravure printing is the process behind most large-volume capsules: the film is printed flat with fine detail and consistent colour, then formed or seamed. It carries the sharpest small type and the cleanest multi-colour work, but each colour needs an engraved cylinder, so the setup is only economical when the run is long. Flexographic printing sits below it in detail but also below it in setup, and it suits medium runs and simpler artwork. Screen printing is applied to pre-made capsules, handles bold flat colour and heavy ink deposits well, and is often the practical route for short runs where a cylinder cannot be justified. Digital printing on shrink film has opened a fourth route for small and personalised runs, at a higher cost per unit and with tighter limits on colour matching.

Metallic effects are handled separately from colour. Hot foil stamping presses a metallic foil onto the capsule with a heated die, which is how a gold or copper brand mark is normally produced, and each foil colour is an extra pass with its own die. On metal capsules the same metallic surface can instead be left bare and worked: embossing raises the brand mark, debossing recesses it, and laser marking produces a matte mark that contrasts with a bright surface without using ink. All of these are durable when the substrate and the lacquer are matched, and all of them can fail when they are not, which is why a foil or embossed sample should be handled, rubbed and refrigerated before the artwork is approved.

Two design rules keep decoration inside the process. The first is that a shrink film changes dimension after printing, so the artwork has to allow for the distortion and for the way the sleeve moves as it shrinks; a proof on flat film is not a proof of the finished capsule. The second is that the tear strip or perforation, if there is one, must be placed where it does not cut through a fine printed element, because the perforation and the cut edge are where ink cracking appears first. The top disc, the skirt and any band are separate print areas and should be specified as such, so that the supplier quotes the same thing the designer drew.

Wine Bottle Capsule Material and Process Reference Table

The table compares the main material families on the criteria that decide a capsule project. The volume bands describe how the market usually allocates these processes; the actual minimum for a specific artwork is confirmed in a quotation, and the confirmation items in the last column should be requested in writing before sampling.

From Drawing to Production: The Development Sequence

A capsule project runs through a fixed sequence, and skipping a step is what turns a proof into a problem. It begins with a bottle and, ideally, a physical one. The brief fixes the bottle shape and neck type, the cork type and the protrusion above the mouth, whether the pack is still or sparkling, and whether the capsule must be removed by a tear strip alone. From those inputs the material family and the geometry follow, and the supplier can propose a size against the measured collar rather than against a catalogue number.

The artwork then moves from design to production-ready. Text is converted to outlines, colours are specified against a recognised reference such as Pantone, and the distortion allowance for the shrink direction is built in. The next step is a printed sample on the real film or shell, not a paper mock-up and not a screen rendering, because the whole point of the sample is to show how ink behaves on the substrate. Where a metallic effect or an emboss is involved, the sample should carry it, since a printed imitation of gold is not evidence that a foil will adhere.

Tooling follows approval of the sample: a print cylinder, a screen, a foil die or an embossing die, depending on the route. Tooling is the point at which the project becomes expensive to change, so the artwork should be frozen before it is ordered rather than after. The last stage is a trial on the customer’s own bottles and, where the customer has a bottling line, on the line itself, because a capsule that shrinks correctly under a hand-held heat gun can behave differently in a tunnel running at production speed. Once the tunnel settings are recorded, they become part of the specification and should travel with the reorder.

Volume Bands and Where the Cost Actually Sits

Capsule cost is dominated by setup rather than by material, which is why a short run of a bespoke capsule can cost several times a short run of a stock one. A plain capsule in a standard colour carries no artwork setup at all, so it is the natural choice for a first vintage, a tasting-room exclusive or a test market, and it can be dressed afterwards with a foil band or a small adhesive seal. Screen printing on pre-made sleeves is the next step up, because it adds a screen cost without a cylinder, and it is often the route used for limited releases and restaurant labels. Rotogravure adds a cylinder per colour, which is why it only makes sense once the artwork is stable and the volume is expected to repeat.

The same logic governs metal. A plain aluminium shell needs only the right shell size, while an embossed or foiled shell adds a die and sometimes a second operation, and the cost per unit falls as the run lengthens. Digital printing inverts the pattern: it has almost no setup, so it is the cheapest way to produce a genuinely small quantity of a printed design, but its unit cost stays high and does not fall as fast as the other routes. The practical implication for a buyer is that the artwork should be as stable as the volume assumptions, and that a design with many colours is a volume commitment rather than a design decision. Where several bottle formats share a brand, it is worth checking whether one artwork and one material can cover them, since consolidating formats is usually cheaper than adding a print setup for each.

Failure Modes: Shrink Deformation, Foil Lift-Off and Loose Skirts

Shrink deformation is the most visible failure. It appears as a puckered or wavy crown, as a shiny stretched area where the film has been pulled thin, or as a wrinkle that runs diagonally across the printed brand. Its causes are an oversized capsule that had to shrink too far, a tunnel temperature that is too high, an uneven airflow, or a capsule that was placed too low or too high on the neck before shrinking. The correction is usually a change of capsule size or a change of tunnel setting rather than a change of material, and it should be established on the real bottle, because a neck with a pronounced collar shrinks differently from a straight one.

Foil lift-off and ink scuffing are the second group. A hot-stamped metallic mark can lift, blister or rub away when the foil was applied to a lacquer that was too glossy or too thin, when the die temperature or dwell was wrong, or when the capsule was handled roughly while still warm. The same problem appears as cracking along a perforation line or along the cut edge of the sleeve. Both are properties of the decoration combination, not of the brand name, and both are answered by a rub test, a tape test and a short cold-storage test on a printed sample before approval. A supplier who cannot supply a handled sample should not be approved on a digital proof alone.

The third group is fit. A capsule whose skirt is too short leaves bare glass above the collar and reads as a mistake on the shelf; one that is too long bunches on the shoulder or folds over the label. A capsule measured against the cork rather than the collar arrives either unable to pass over the collar or loose everywhere else, and a loose skirt is the classic cause of capsules that fall off in a warm container. Colour consistency across batches is a fourth, quieter failure: because a shrink film distorts after printing, an exact match to a reference colour is best confirmed on shrunk capsules rather than on flat film, especially on PVC, where batch-to-batch variation is greater than on laminated films.

Frequently Asked Questions About Wine Bottle Capsules

How many capsules do I have to order to get a printed design?

There is no single number, because the deciding factor is the decoration route rather than the capsule itself. Screen printing on pre-made sleeves needs only a screen, so it tolerates short runs. Rotogravure needs a cylinder per colour, so it only becomes economical once the artwork is stable and the volume repeats. Digital printing on shrink film has almost no setup and suits genuinely small quantities at a higher unit cost. State the quantity you actually need in the enquiry and ask for the route that fits it, rather than assuming a printed capsule requires a very large order.

Is PVC still acceptable for wine capsules?

It remains widely used, but acceptability now depends on the destination market and on the buyer’s own packaging policy. PVC contains chlorine and is difficult to recycle in most collection streams, and a growing number of retailers and brand owners exclude it by policy. Plasticisers in PVC also have to be declared for food contact, which is why the grade and the declaration matter. If the pack is aimed at a market with strict packaging or waste rules, polylaminate or a PVC-free shrink film is usually the safer specification, and the food-contact documentation should be requested in writing.

Can a capsule be applied over a screw cap instead of a cork?

Yes. Screw-capped wines are frequently dressed with a sleeve that covers the cap and the upper part of the neck, which gives the bottle the same shelf appearance as a cork-finished pack. The practical difference is that the heat must not distort the cap’s own sealing liner, and the sleeve must not prevent the cap from being turned, so the shrink settings, the sleeve length and the point where the sleeve ends are all specified against the actual cap and bottle. The removal order is worth testing at the same time, because a sleeve that is tight over the cap can make the pack difficult to open.

Does the heat used to shrink a capsule affect the wine?

In a correctly set tunnel the exposure is brief and local to the neck, and the wine in the body of the bottle is not measurably warmed. The situations worth avoiding are excessive tunnel temperature, a second shrink pass after re-work, and a warm bottle entering the tunnel, because heat raises the headspace pressure and can push the closure fractionally. The practical control is to record the tunnel settings that were proved on the real bottle, and to keep the capsule material and the bottle format unchanged so that those settings stay valid.

What is the difference between a PVC and a polylaminate capsule?

PVC is a single-material shrink film that shrinks over a wide range, prints brightly and costs less per unit. Polylaminate is a laminate, typically built around a polyethylene and aluminium foil structure, which shrinks less aggressively, produces a softer and more premium appearance, and avoids PVC. Polylaminate is more forgiving over a shaped collar and is often chosen for export programmes, but decoration has to be printed before lamination, which narrows the process options. Both are legitimate choices; the decision is usually made on market policy, appearance and volume rather than on fit.

How do I specify the capsule size to a supplier?

Measure the bottle, not the cork. Send the collar or bead diameter of the neck, the height from the top of the mouth to the point where the capsule should end, the height the cork or cap protrudes above the mouth, and the neck type. A photograph of the neck alongside a ruler is useful, and a physical bottle or neck sample is better. If the bottle is not yet produced, the drawing of the neck finish is the input that allows the capsule to be sized before the glass arrives, which avoids ordering the sleeve after the bottles.

Can hot foil stamping be combined with printed colour on the same capsule?

Yes, and gold or copper brand marks on a coloured capsule are normally produced this way. Each foil colour is a separate pass with its own die, so the cost and the risk both rise with the number of metallic elements. The main risk is adhesion: a foil applied to an unsuitable lacquer or at the wrong die temperature can lift or rub off, which is why a foil sample should be tested by rubbing, taping and a short cold-storage check before the artwork is signed off. Simplifying the metallic area is usually cheaper than solving an adhesion problem.

Send Your Volume, Bottle and Decoration Brief

A capsule proposal can be made from three inputs, and none of them is a price. The first is volume: the quantity for the first run and the quantity you expect to repeat, because that single pair of numbers decides whether the design should be built for screen printing, gravure or digital, and whether a bespoke die is worth creating. The second is the bottle: the neck format or, better, a bottle sample, together with the cork or cap that will be underneath and whether the wine is still or sparkling.

The third is the decoration requirement in plain terms: the colours, whether the brand mark should be printed, foiled, laser-marked or embossed, whether a matte or gloss finish is wanted, and whether a tear strip or perforation has to be included for the consumer. Add any market constraint that rules a material out, such as a PVC-free policy or a food-contact declaration requirement for a specific destination. With those inputs, a material and process proposal can be prepared with the shrink or crimping method, the geometry against your collar, the decoration route, the tooling position and the sampling plan set out before a commitment is made, and any glass format that is still open can be matched to the capsule at the same time through the standard wine bottles range.
